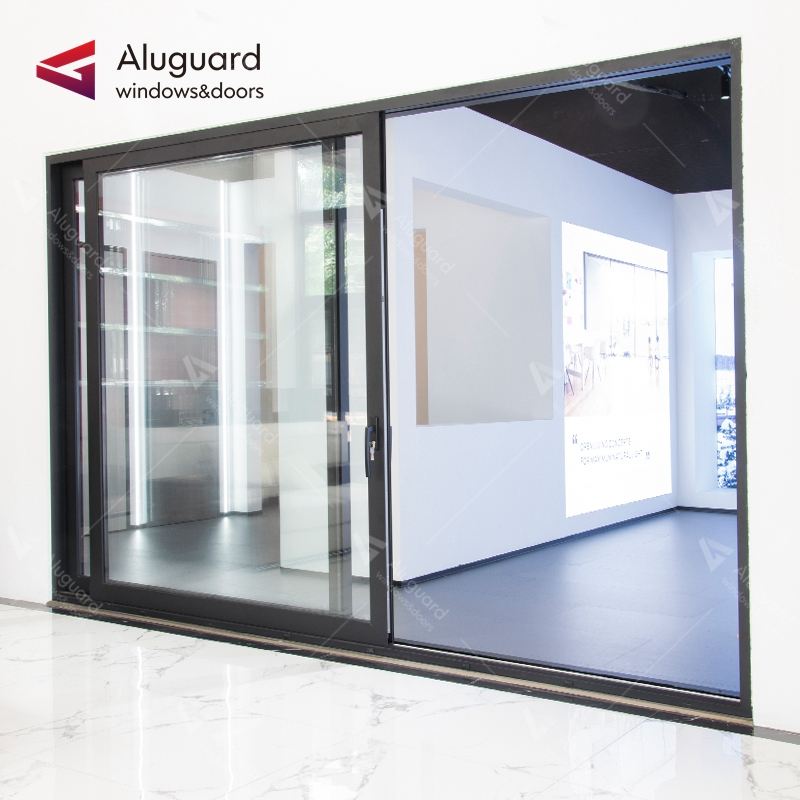

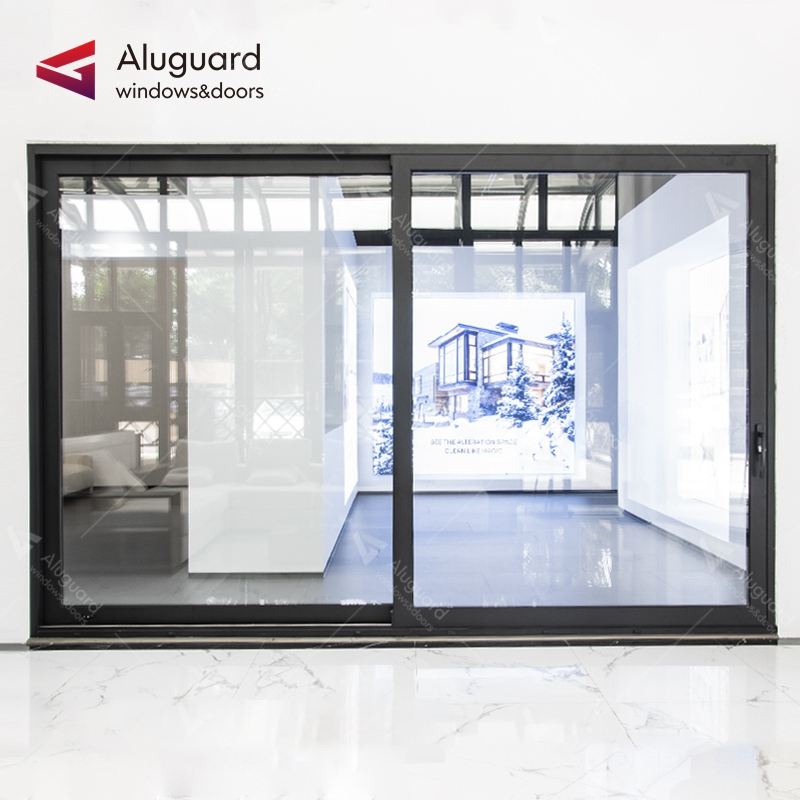

ULTRA SERIES - AAMA-CW CLASS WATERPROOF LIFT & SLIDING ALUMINUM DOOR
● AAMA CW Class Sliding Door
Our advanced sliding door system, engineered to exceed industry standards with a water tightness surpassing 720pa as certified by AAMA CW CLASS.

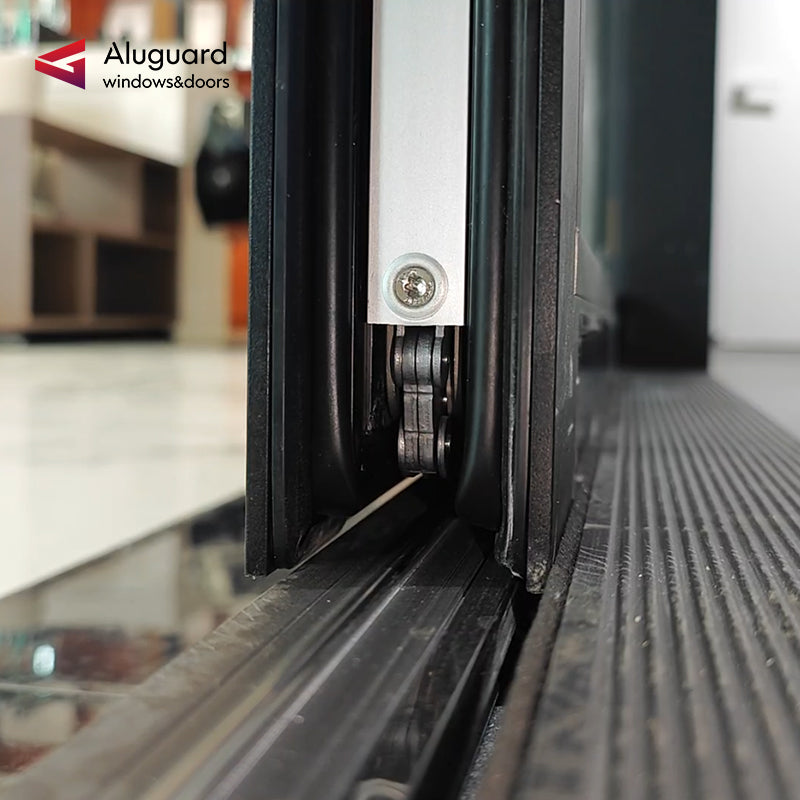

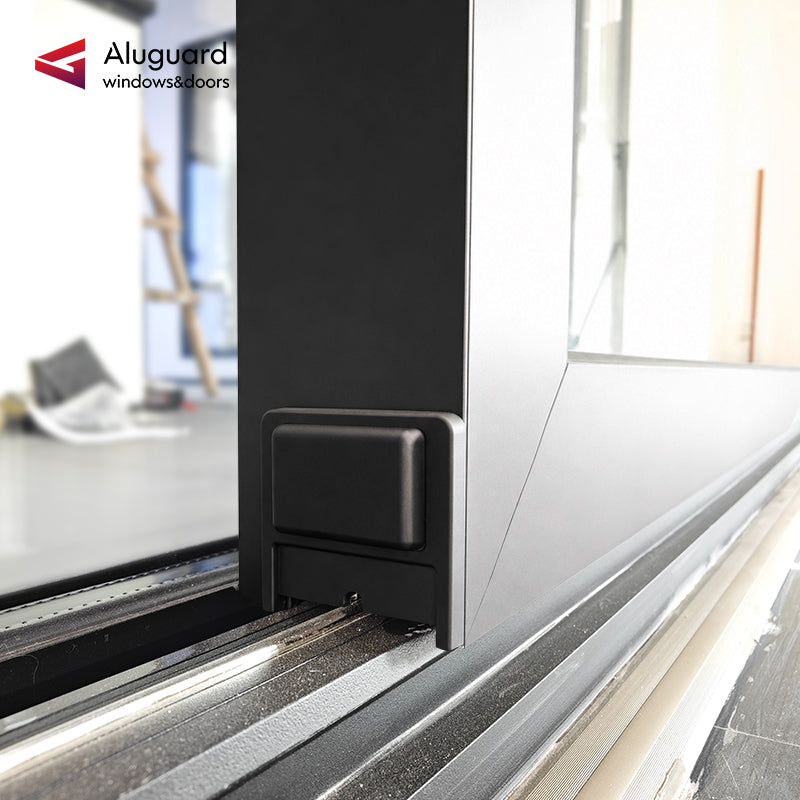

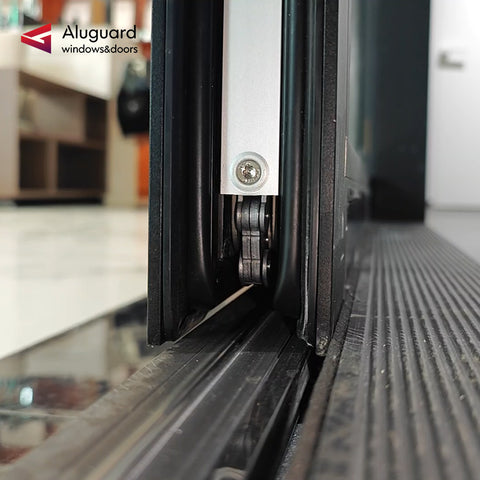

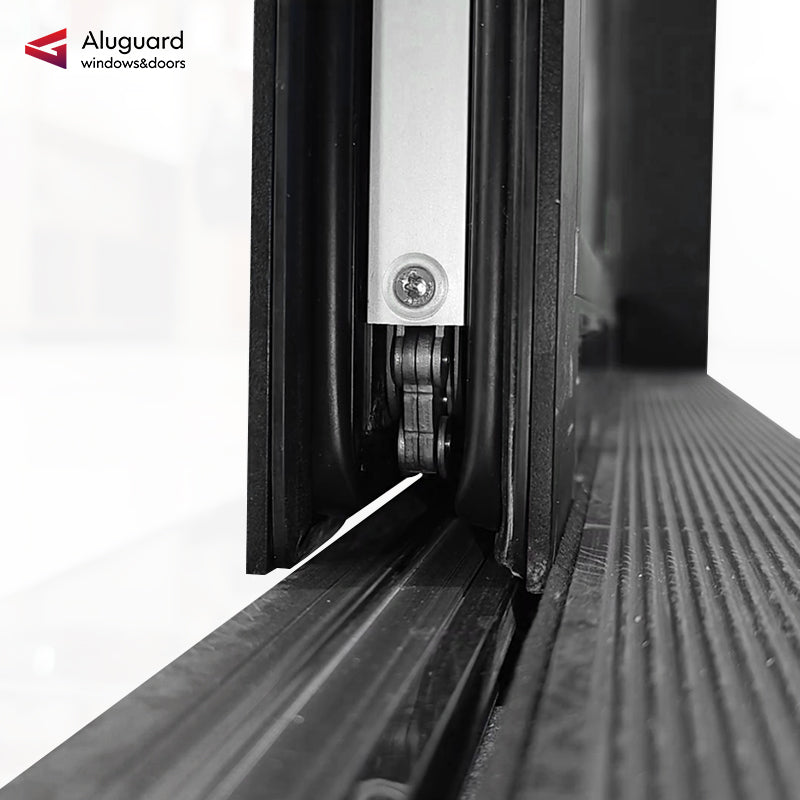

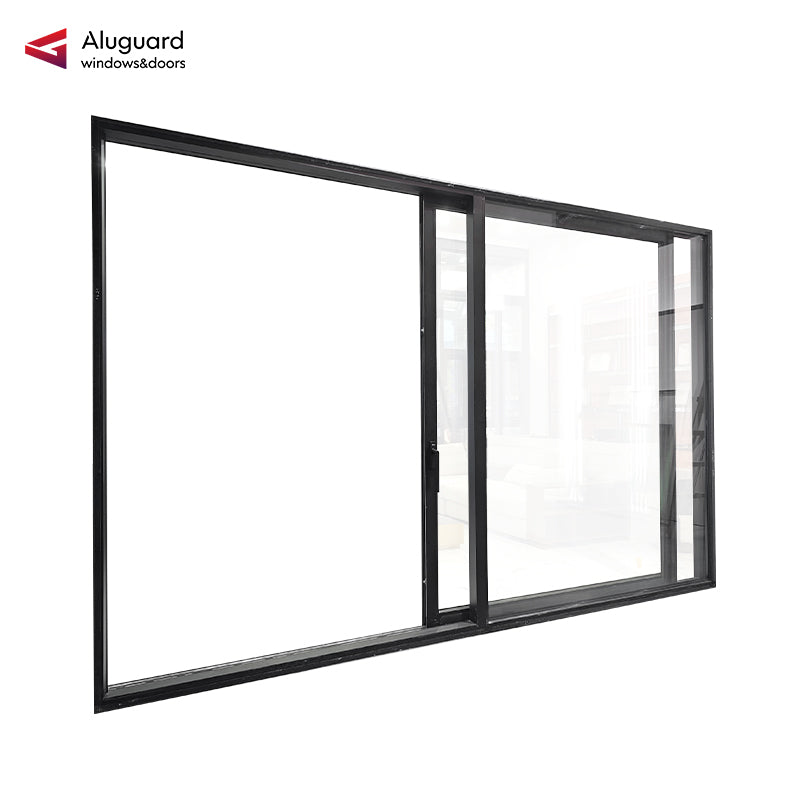

● Lift & Sliding design

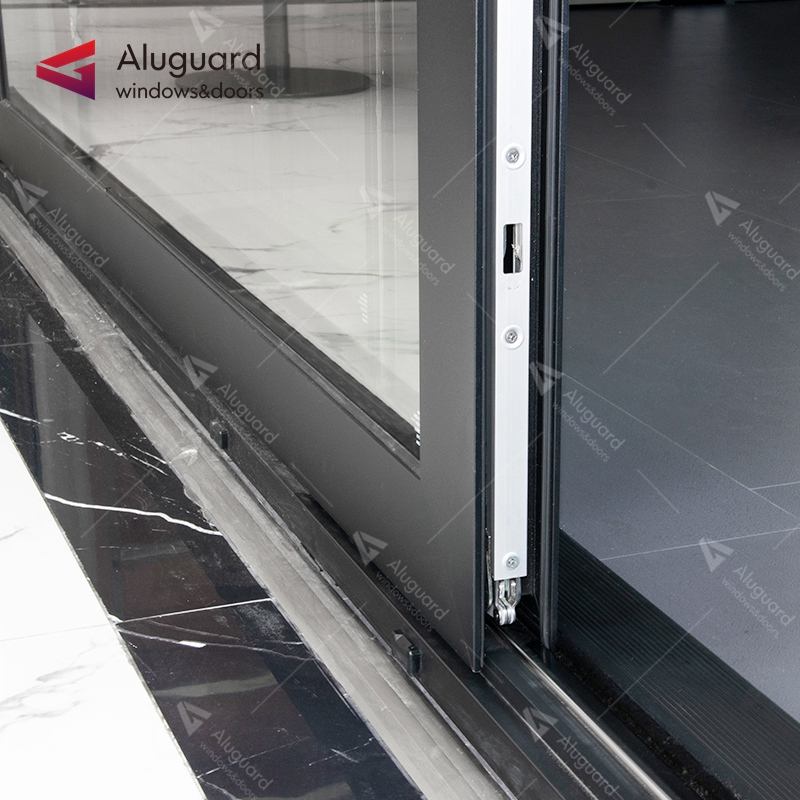

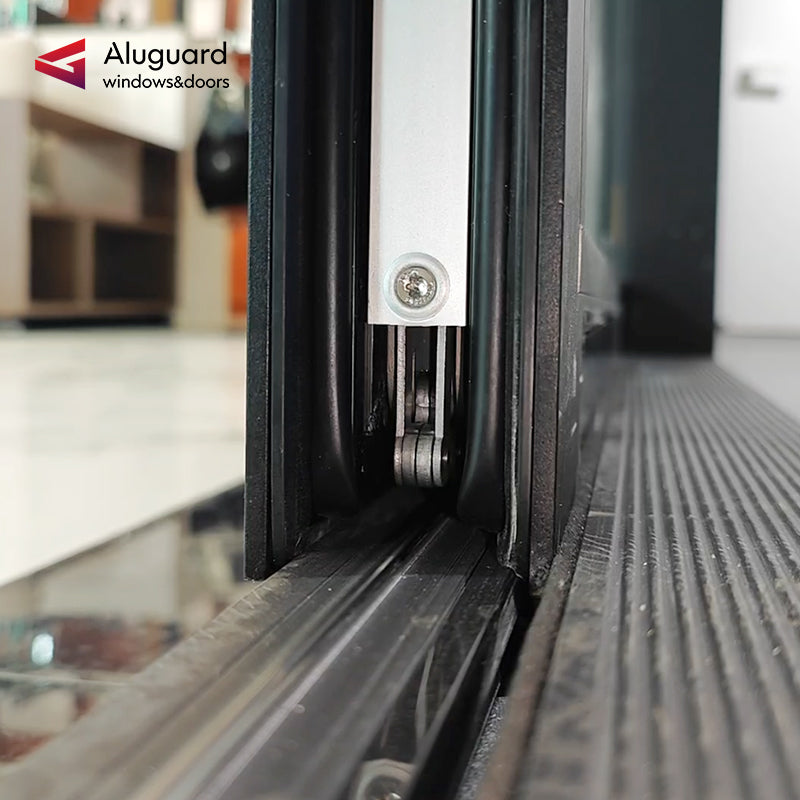

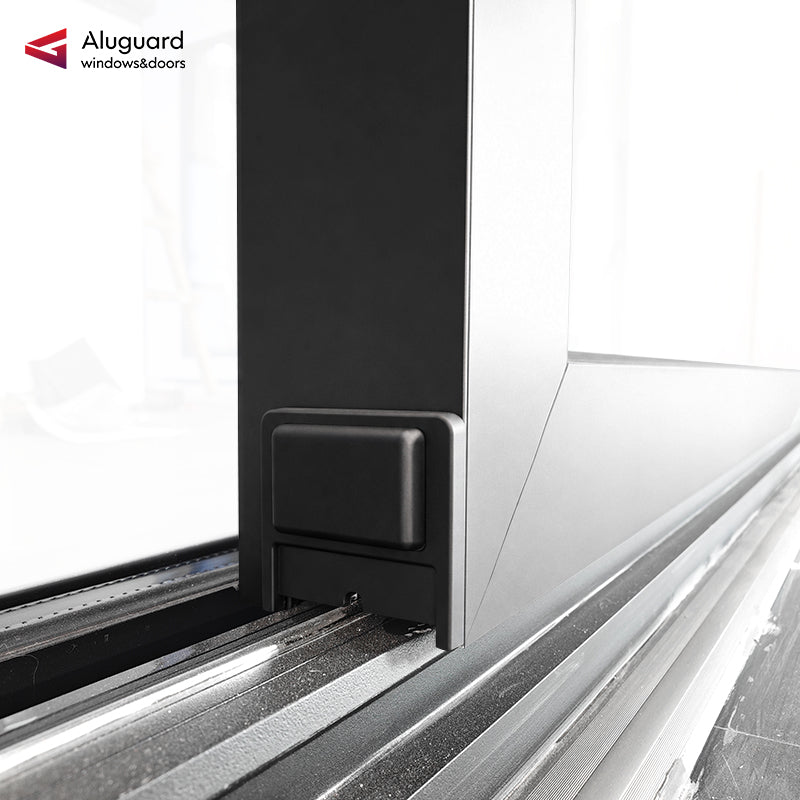

Our innovative lift-and-slide wheel system ensures seamless operation; as the wheels ascend, the door panel lowers onto the track, forming a tight seal, while descending wheels allow for smooth gliding motion. Experience unparalleled performance and reliability with our high-performance sliding door solution.

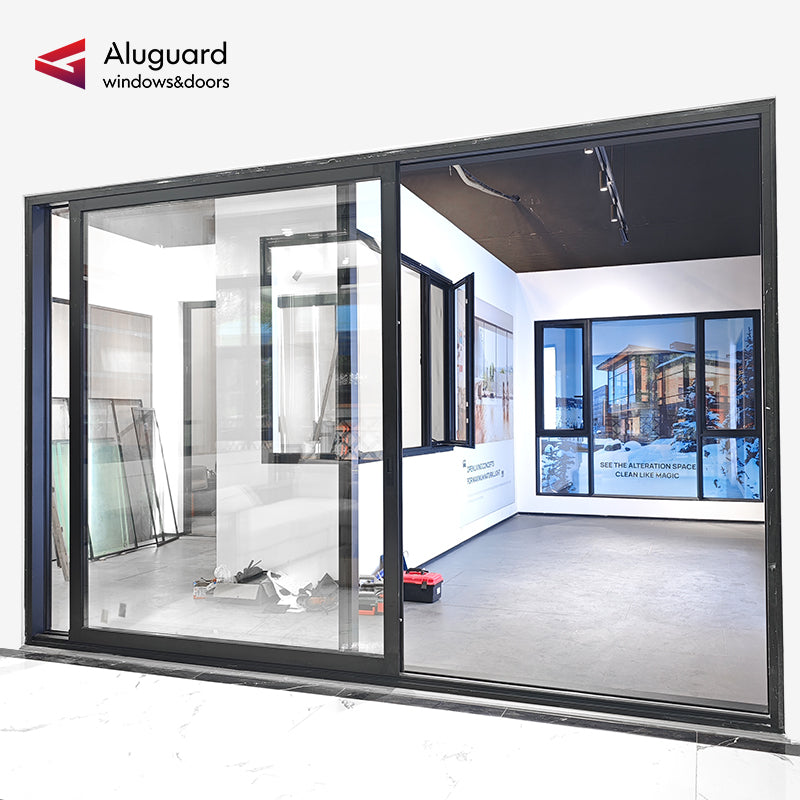

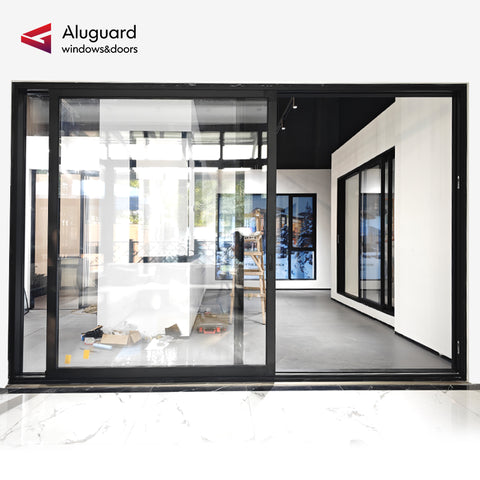

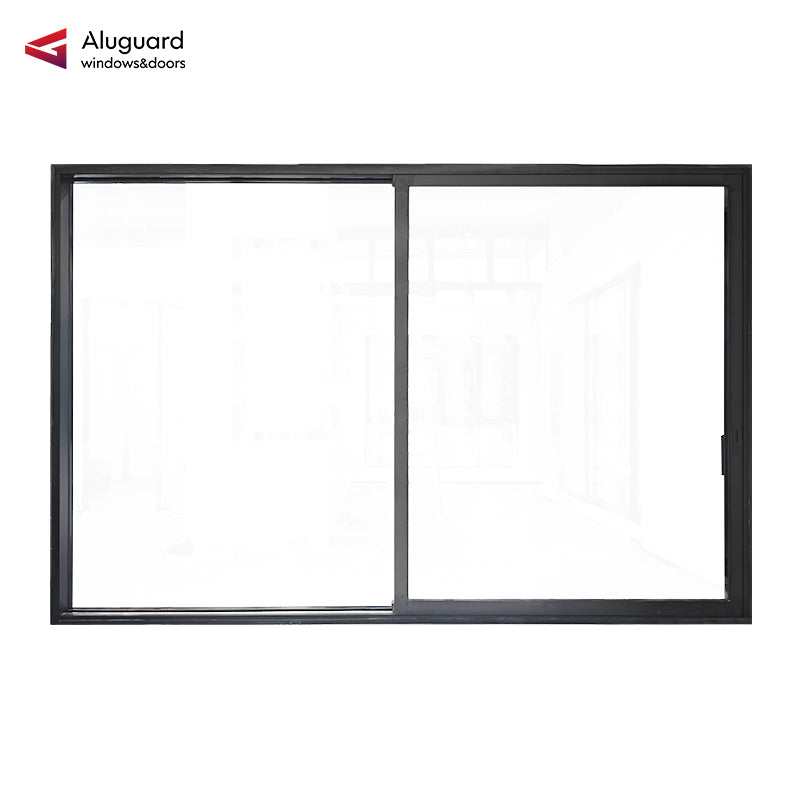

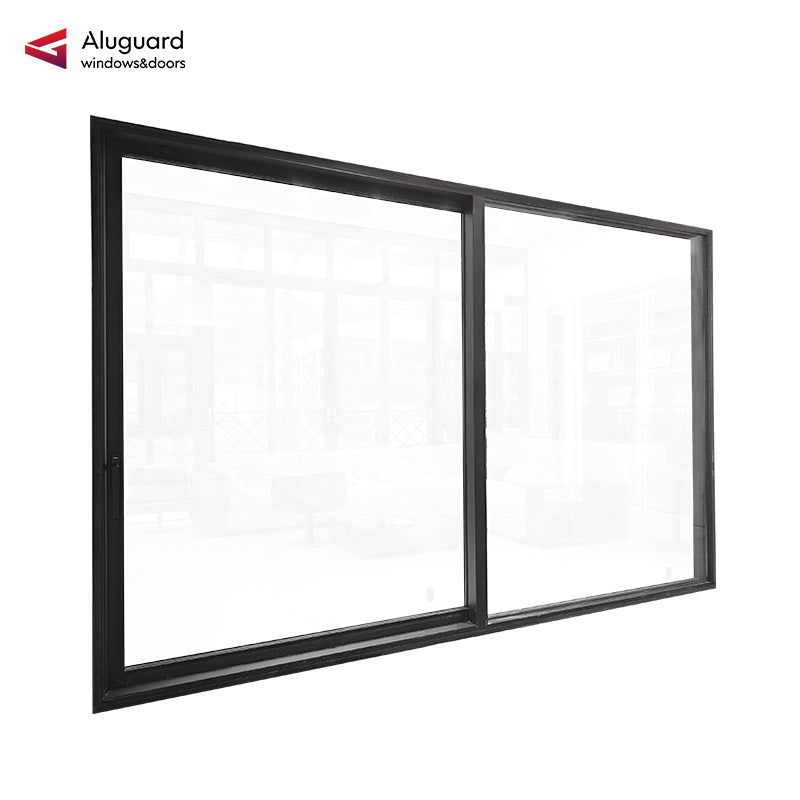

● Large Size
The large full view glass panels beautifully fuse indoor and outdoor spaces, enhancing your home's glass expanses and patios – all while their rugged.
● Weather resistance

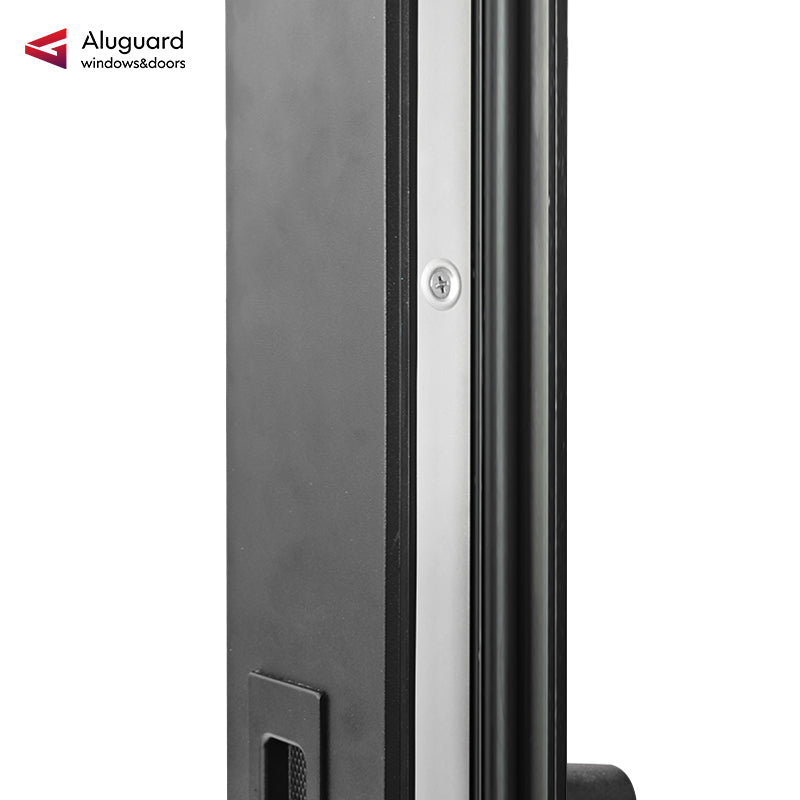

Powder coating aluminum construction makes them virtually maintenance-free.There are EPDM sealing strips between the gaps of the door, which has good air tightness and water tightness.
● Thermal Insulation

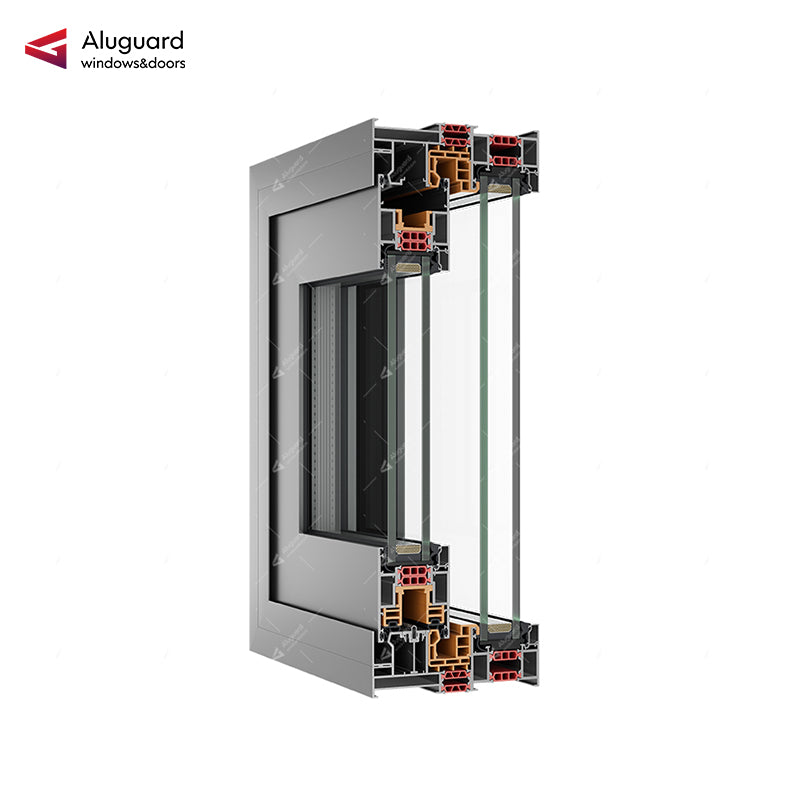

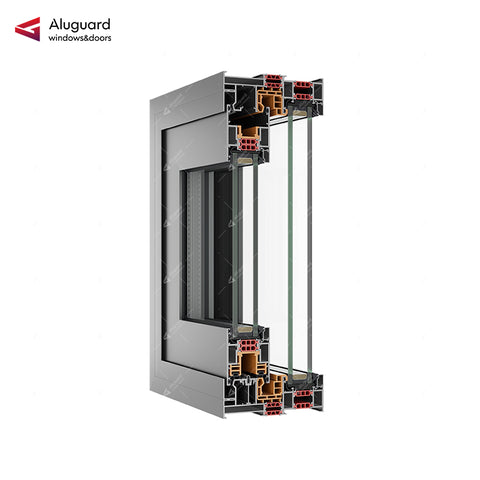

Available with Advanced Low-E insulating triple-pane glass with krypton or argon for increased energy efficiency.Thermal transmission coefficient:U≤0.316 BTU/h·ft2·℉
System Details
Performance
U-Factor
0.241
Visible Transmittance
0.51
Air Leakge
≤0.3
Water Tightenss
No Leakage @ 15 psf
Design Wind Load Resistance
60 psf
Overload Wind Load Resistance
75 psf
Specifications
Basic Frame Depth
155mm
Max Swing Panel Height
96"
Max Swing Panel Width
72“
Min Swing Panel Height
80"
Min Swing Panel Width
30"
Suggest Fixed Panel Area （Single ）
≤6 m²
Why You'll Love It

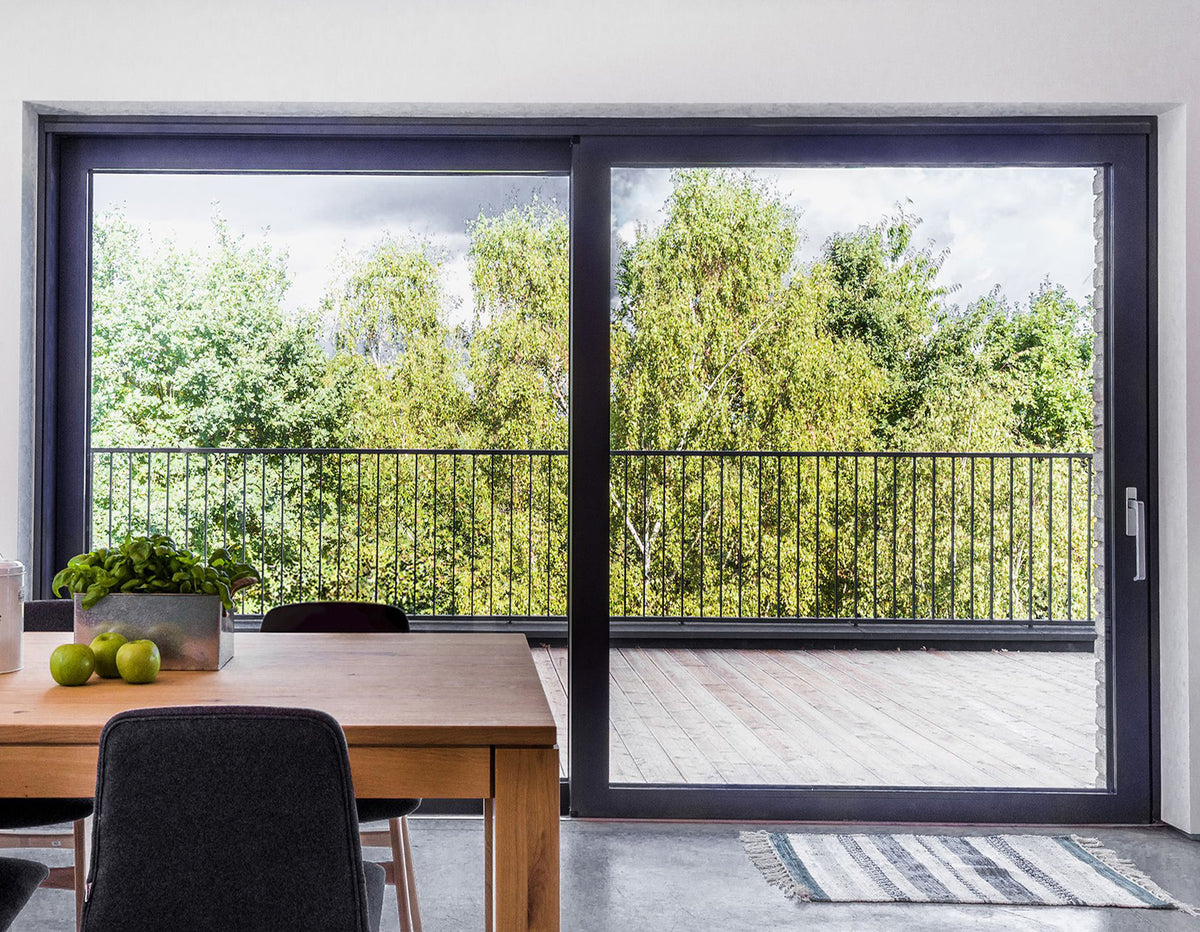

Maxuminum Light vison
The clean lines of the modern minimalist desigrmake the product look sleek and aesthetically pleasing
AAMA CW Class Sliding Door
Our advanced sliding door system, engineered to exceed industry standards with a water tightness surpassing 720pa as certified by AAMA CW CLASS

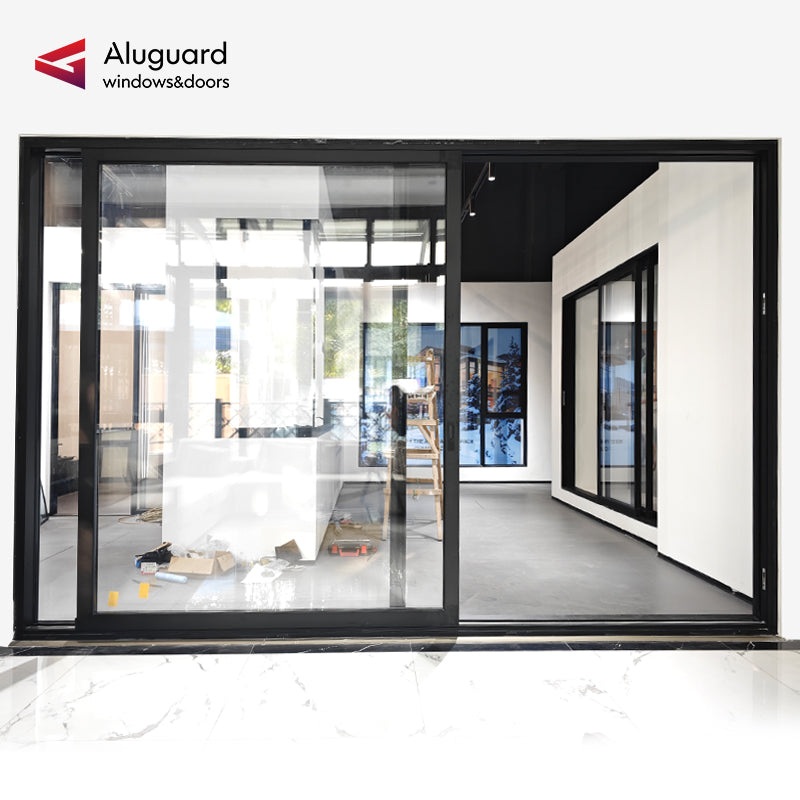

LARGER SIZE
The maximum height of a single-leaf door is 96 inches
Lift & Sliding design
Advanced lifting mechanism ensures smooth, lightweight operation even with large and heavy door panels, delivering a premium user experience
Design Options

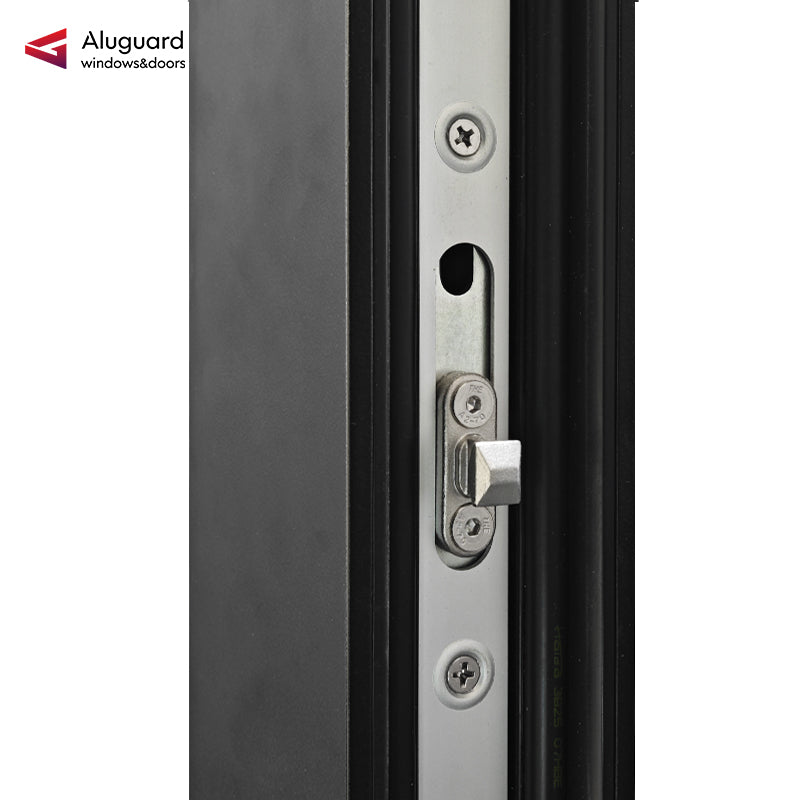

Hardware

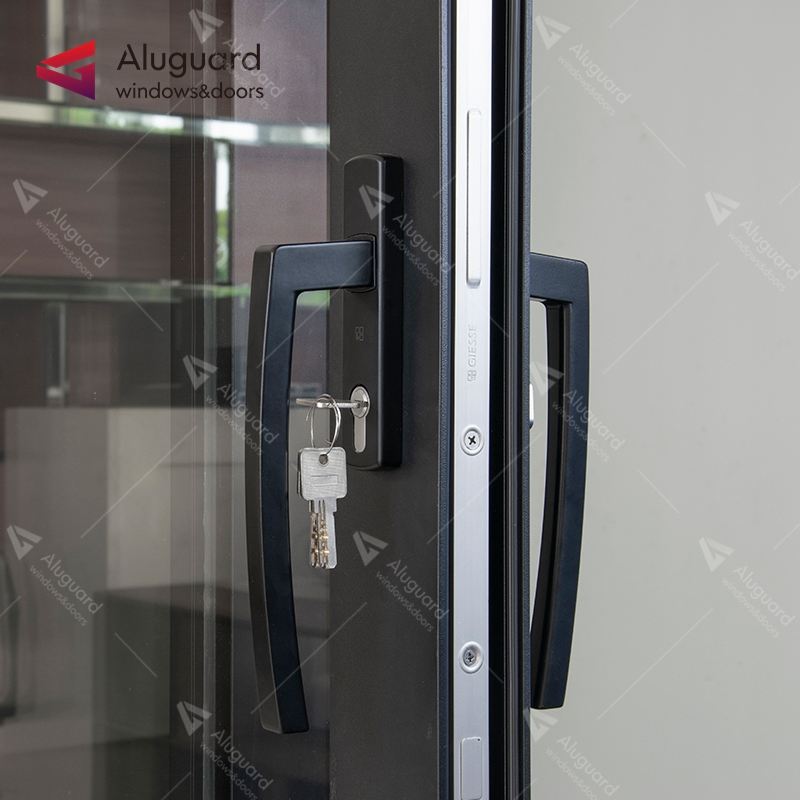

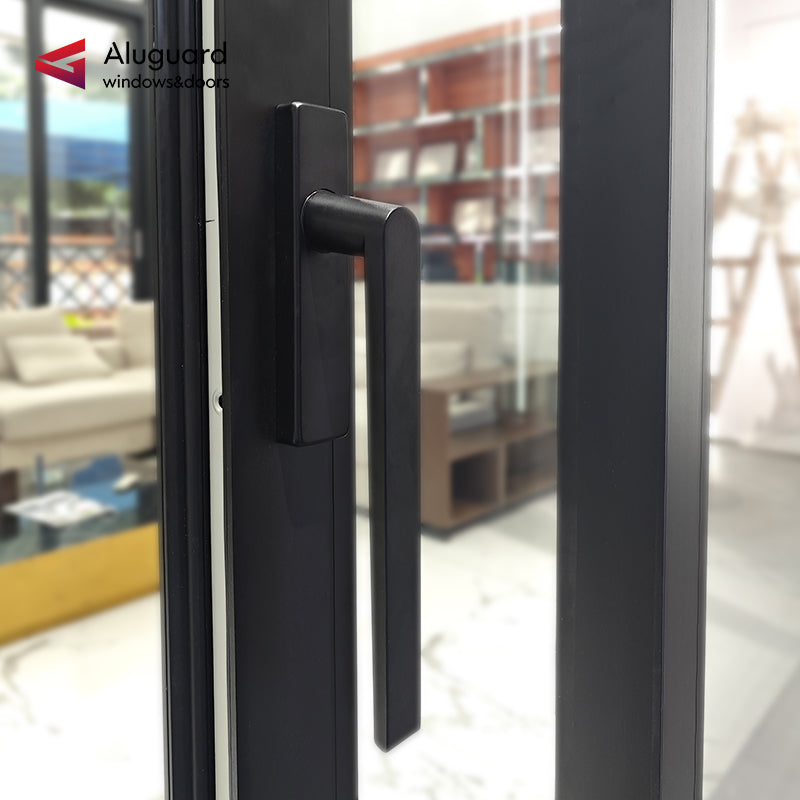

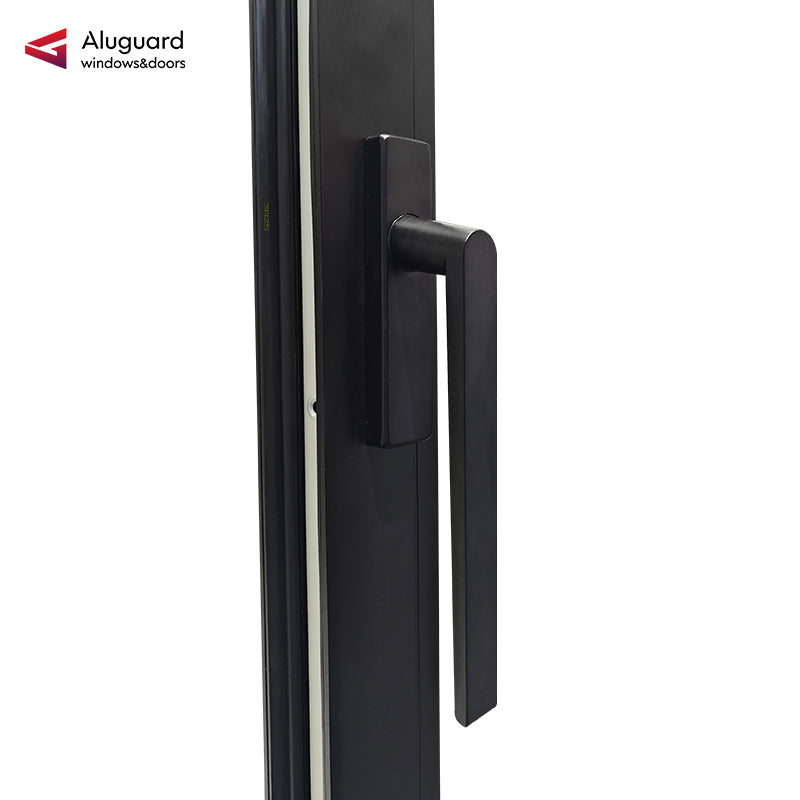

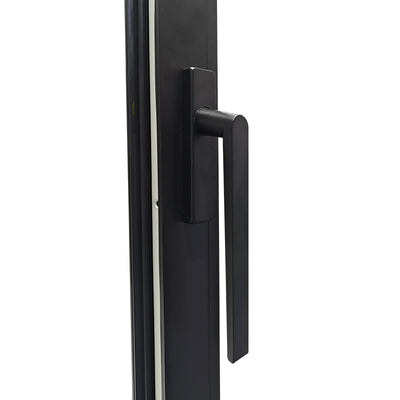

Handle
A high-quality window deserves a dependable finish. Our low-maintenance, clad-wood products feature an extruded aluminum exterior finished in commercial-grade paint for superior resistance to fading and chalking. Our palette of 19 color options spans from muted, earthy tones to bold, rich colors and three pearlescent finishes. Custom color matching is also available to meet any design vision.
Colors
Standard Colors
A high-quality window deserves a dependable finish. Our low-maintenance, clad-wood products feature an extruded aluminum exterior finished in commercial-grade paint for superior resistance to fading and chalking. Our palette of 19 color options spans from muted, earthy tones to bold, rich colors and three pearlescent finishes. Custom color matching is also available to meet any design vision.
Matte Black
Matte Gray
Pure White
Matte Coffe
Champagne
Custom Colors
Any color. Any window or door. You name it. No matter what your inspiration for a custom window or door color, Marvin will match it. You get any color your heart desires, with your own personal custom color name and a 20-year warranty. See your Marvin dealer for details and ask about special pricing.
Opening Method
Slide to open

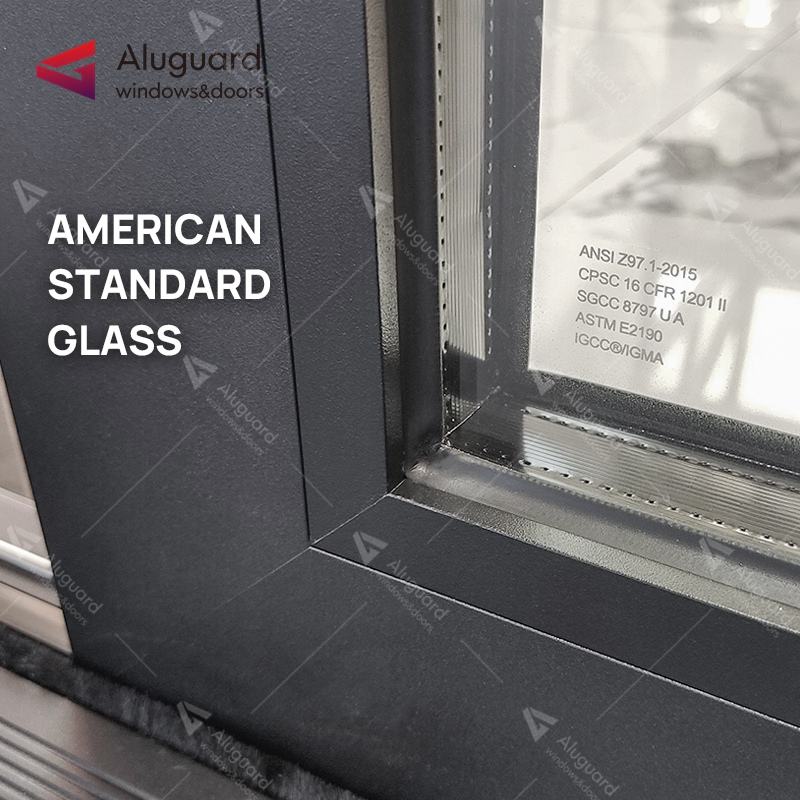

Glass
Laminate-glass
Low-E_Single_Coating
Tempered-Glass
Triple_Pane
